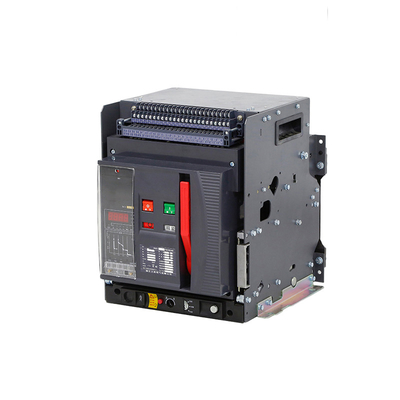

W1 Air Circuit Breaker
Description:
Air circuit breaker is suitable for the circuit of AC 50Hz with rated service voltage 400V,690V and rated service current up to 6300A. It is mainly used to distribute electric energy and protect circuits and electric equipment against over-load, under-voltage, short-circuit and single-phase earthing fault. With Intelligentized and selective protection functions, the breaker can improve the reliability of power supply, and avoid unnecessary power failure. The breaker is applicable for power stations, factories and modern high-buildings, especially for the distribution system of intelligent buildings.
The technical parameters of the form are for reference only.
Customized products can consult online customer service!
| Model | W1-2000 | W1-3200 | W1-4000 | W1-6300 | ||
| Rated Current In (A) | 630,800,1000, | 2000,2500 | 3200,3600 | 4000,5000 | ||
| 1250,1600,2000 | 2900,3200 | 4000 | 6300 | |||
| Rated Working Voltage Ue (V) | AC400/690 50-60Hz | |||||
| Rated Insulation Voltage Ui (V) | 1000V | |||||
| Rated Impulse Voltage Uimp (V) | 8000V | |||||
| No of Pole | 3P/4P | |||||
| Rated Current of N pole (A) | 50% In(Standard configuration 100% available | |||||
| Rated Ultimate Short Circuit | AC 400V | 80 | 100 | 100 | 120 | |
| Breaking Capacity lcs (KA) | AC 690V | 50 | 65 | 65 | 80 | |
| Rated Operation Short Circuit | AC 400V | 50 | 65 | 65 | 80 | |
| Breaking Capacity Icu(KA) | AC 690V | 40 | 50 | 50 | 70 | |
| Rated Short time withstand | AC 400V | 50 | 65 | 65 | 85 | |
| Current lcw (KA) | AC 690V | 40 | 50 | 50 | 65 | |
| Electrical life | 1000 | 500 | 500 | 500 | ||
| (Times) | ||||||
| Operation Performance | Mechanical life(Times) | Non-maintenance | 2500 | 2500 | 2500 | 2500 |
| Maintenance | 10000 | 10000 | 10000 | 10000 | ||
| Item | Description |
| Ambient temperature | -5°C~+40°C (except special order products) |
| Altitude | <2000m |
| Pollution grade | 3 |
| Safety category | Main circuit and undervoltage tripping coil is IV, other auxiliary and control circuit is III |
| Installation position | Vertical installed, tilt not exceed 5 degree |
| Environmental protection | Most of parts use recyclable and degradable materials |
| Isolating function | With isolating function |
