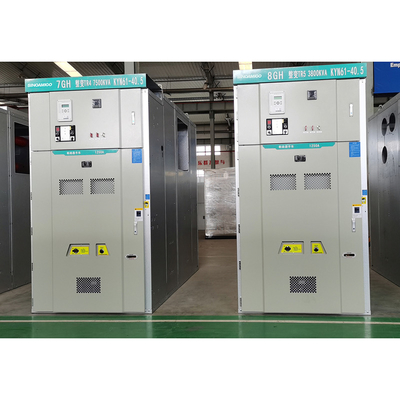

SINOAMIGO 40.5kV ZN85 Switchgear Vacuum Circuit Breaker Switchgear 3 phase panel board
Description of KYN61G-40.5 switchgear
power distribution equipment It is applied to 40.5kV, 3-phase, AC 50/60Hz electrical power network for receiving and distributing power energy and also for control, monitoring and protection.
It is applicable in general power system and occasions with frequent operation. The product conforms to GB 3906 "3~35kV AC Metal Enclosed Switchgear and Controlgear", GB/T 11022 "The Common Technical Clauses of HV Switchgear and Controlgear Standard", DL/T404 "Order Technical Term of Indoor AC HV Switchgear" and IEC298 "1~52kV AC Metal Enclosed Switchgear and Controlgear Standard". electrical switchboard
Technical specification of KYN61G-40.5 switchgear
|
Item |
Unit |
Data |
|
|
Rated voltage |
kV |
40.5/36/35/33 |
|
|
Insulation level |
Rated power-frequency withstand voltage(1min) |
kV |
95 / 118 (phase to earth / across open contacts) |
|
Rated lightening impulse withstand voltage |
kV |
185/ 215 (phase to earth / across open contacts) |
|
|
Rated frequency |
Hz |
50 / 60 |
|
|
Rated main bus bar current |
A |
630,1200,1600,2000,2500 |
|
|
Rated branching bus bar current |
A |
630,1250,1600,2000 |
|
|
4s Short-time withstand current(rms.) |
kA |
16, 20, 25, 31.5 |
|
|
Peak withstand current(peak.) |
kA |
40, 50, 63, 80 |
|
|
Protection degree |
Enclosure: IP4X Between compartment: IP2X |
||
Structural drawing of KYN61G-40.5 switchgear
| 1,Enclosure | 8, Fixed contact box |
| 2,Vacuum circuit breaker | 9, Isolating plate |
| 3,Secondary circuit plug | 10,Earth-switch |
| 4,Partition (shutter) | 11,Operating axis |
| 5,Main bus bar bushing | 12,Cable |
| 6,Sub—bus—bar | 13,Current transformer(CT) |
| 7,Main bus-bar |
Outline dimension of KYN61G-40.5 switchgear
|
Height |
|
2400(mm)/2600(mm) |
|
Width |
Rated branching bus bar current up to 1250A Rated short-circuit breaking current(rms.)up to 31.5KA |
1200(mm) |
|
Rated branching bus bar current up to 1600A Rated short-circuit breaking current(rms.)up to 40KA |
1200(mm)/1400(mm) |
|
|
Depth |
|
2600(mm)/2800(mm) |
Weight:2000-2400kg.
*Suitable for miniaturization product being equipped.
SINOAMIGO POWER T@D include below:
VCB & Operation Mechanism: Zhejiang Juli Electric Co.,Ltd
Switchgear: Bokong Electric Co.,Ltd
Transformer: Baitong Electric Technology Co.,Ltd
Zhejiang Juli Electric Co.,Ltd. Focus on VCB Operating mechanism, Vacuum Circuit Breaker, Recloser controller for VCB, include R&D, manufacturing, marketing and after service, honored as a member of High-Technology corp in China, now employee more than 300 and technician team more than 35%. Started since 2000, with headquarter in Liushi Town, Wenzhou City,China, where were named as the China electricity capital centre; company pay a lot capacity and time for R&D, cooperate with many famous University intelligence and famous brand enterprises.
Sino Amigo, your China friends; Wherever you go, SINOAMIGO
Q: What's the MOQ(minimum order quantity)?
A: One Set.
Q: Are OEM and ODM available?
A: Yes, it is. Our products can be Customized. We have design and engineer teams.
Q: What is the quality of products?
A: We have advanced test equipment, products will be tested qualified before shipment.According to customers' requirements, core components can be customized brand, such as Siemens, Schneider, ABB, etc.
We always do more than is required of us.
19 years of production experience, the best quality and the price can be assured, pls contact us freely,we will reply to you immediately.
