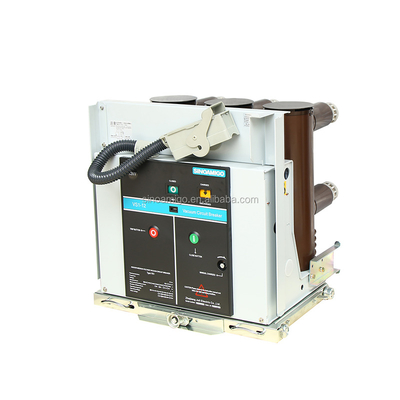

12kV 24kV VS1 ZN63 Chassis Truck For Circuit Breaker Disjoncteur
VS1-24 series indoor vacuum circuit breaker (here in after as "Circuit Breaker") is used as an indoor switchgear of 24kV power system and a control and protection unit in both electric network equipment and power equipment in industrial enterprise and mine.Owing to its unique advantages, the circuit breaker is especially applicable to the frequent operation of rated working current or the operation with repeated open and close of short circuit. Product complies with the standards GB1984,IEC62271-100.
The circuit breaker features an integrated design to combine operating mechanism and circuit breaker itself into one. It could be used as a stationary installation unit or assembled into cart unit with some special driving mechanism.
| Item | Unit | Data | |||
| Rated voltage | kV | 24 | |||
| Rated frequency | Hz | 50 / 60 | |||
| sulation level | Thunder impulse withstand voltage (peak value) | kV | 125 | ||
| 1min industrial frequency withstand voltage | kV | 65 | |||
| Rated short-circuit break current | kA | 20 | 25 | 31.5 | |
| Rated current | A | 630,1250 | 630,1250,1600 | 1250,1600, 2000,2500 | |
| industrial frequency withstand voltage | kA | 20 | 25 | 31.5 | |
| Rated peak value withstand current | kA | 50 | 63 | 80 | |
| Rated short circuit close current | kA | 50 | 63 | 80 | |
| Rated operation order | O-0.3s-CO-180s-CO | ||||
| Rated short-circuit current break and close time | times | 20 | |||
| Rated short-circuit duration | s | 4 | |||
| Mechanical life-span | times | 10000 | |||
| The two circuit power frequency withstand voltage | V | 2000 | |||
| Single capacitor bank breaking current | A | 630 | |||
| Back-to-back capacitor bank breaking current | A | 400 | |||
|
Dynamic and static contacts allow wear cumulative thickness |
mm | 3 | |||
| Break-brake number (rated operating voltage) | ms | 20~50 | |||
| Close brake times (rated operating voltage) | ms | 35~70 | |||
| Rated points/close brake operating voltage | V | AC110 / AC220 / DC110 / DC220 | |||
| Energy storage rated voltage of motor | V | AC110 / AC220 / DC110 / DC220 | |||
| Motor power rating | w | 70 | |||
| Energy storage time | s | ≤15 | |||
