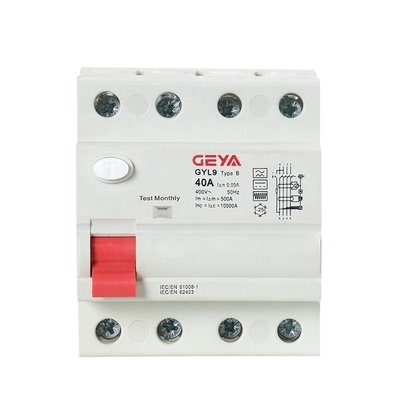

Name: GEYA 4 Poles B RCCB Circuit Breaker Residual Current DC ELCB 4P 40Amp 30mA Type B 10KA RCD For Solar PV System 6kA / 10kA
Brand: GEYA 4 Poles B RCCB Circuit Breaker Residual Current DC ELCB 4P 40Amp 30mA Type B 10KA RCD For Solar PV System 6kA / 10kA
SKU: GYL9-4P-40A-30MA
Price: 79.15 USD
Availability: InStock
Rating: 4.7 (127 reviews)

Características Galeria Descrição de produto Peça umas citações

Características

Especificações

Model Number: GYL9-4P-40A-30MA

Breaking Capacity: 6kA/10kA

Rated Voltage: 230V/400V

Rated Current: 1-63a

BCD Curve: BCD

Mechanical Life: 6000

Certificate: CE CB ISO9001

Breaking capacity: 6kA/10kA

Rated current: 1A-63A

Product name:: Auto Reset Circuit Breaker

Type: MINI

Rated voltage:: 1P 230V/400V, 2P 3P 4P 400V

Poles Number: 4

Informação básica

Certificação: CE CB ISO9001

Model Number: GYL9-4P-40A-30MA

Condições de Pagamento e Envio

Packaging Details: GEYA Brand Packing, 1pcs individual box, 10pcs in middle box, outer carton have 60pcs, 100pcs, 200pcs

Descrição de produto

GEYA B Type RCCB Residual Current Circuit Breaker DC ELCB 2P 63 Amp 30mA Type B 10KA RCD

***It is B type RCCB 2P 63A 30mA***

Type B RCCBs, in addition to normal AC, can detect high frequency AC and pure DC earth leakage currents. Reducing the risk of fire
and/or electrocution through automatic disconnection of the electrical supply relies on the selection of the correct type of RCCB.

Application Example

EV & PV installations
Frequency converters
UPS installations
High-frequency power converters
Building site power supply cabinets

1.1 Function
Control electric circuits.
Protect people against indirect contacts and additionalprotection against direct contacts.
Protect installations against fire hazard due to insulation faults.Residual current circuit breakers are used in housing,
tertiarysector and industry
1.2 Selection
Detectable wave form
B class
Tripping is ensured for sinusoidal AC residual currents pulsed DCresidual currents, alternatingresidual sinusoidal currents up
to1000Hz, pulsating direct residual currents and for smooth directresidual currents, whether applied suddenly or increasing
slowly.
Tripping sensitivity
30mA -additional protection against direct contact.
Tripping time
Instantaneous
It ensures instantaneous tripping (without time- delay).
