NF630-CP 3P 630A MCCB
APPLICATION:
NF series circuit breaker is feature of reliable working out and steady, performance, reasonable structure, beautiful appearance and small volume etc. It can be used in the circuit of 50Hz or 60Hz, rated voltage up to 600V.It is used to distribute electric energy in distribution network and be overload or short circuit protection power equipment,and also can be used in transformation of circuit unfrequency the normal conditions.
TECHNICAL DATA:
| NF-CP | Pole number | Rated current(A) | Rated voltage(A) | on & off capacity |
| NF50-CP | 3 | 10,15,20,30,40,50 | 600V | 400V AC/5kA 500V AC/2.5kA |
| NF60-CP | 3 | 60 | 600V | 400V AC/5kA 500V AC/2.5kA |
| NF100-CP | 3 | 60,75,100 | 600V | AC 400V/10kA AC500V/7.5kA |
| NF250-CP | 3 | 125,150,175,200,225,000 | 600V | AC 400V/18kA AC500V/10kA |
| Type | NF30-CS | NF50-CS | NF60-CS | NF100-CS | NF250-CS | NF400-CS | NF630-CS | NF800-CS | NF1250-CS |
| Rated current of frame(A) | 30 | 50 | 60 | 100 | 250 | 400 | 630 | 800 | 1250 |
| rated current(40
°C) |
3,5,10 15,20,30 |
10,15,20 30,40,50 |
60 | 60,75,100 |
125,150 175,200 225,250 |
250,300
350,400 |
500 600,630 |
600,700 800 |
800,1000 1200,1250 |
| Rated insulation voltage(V) | 600 | 600 60 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| Rated ultimate short circuit breaking capacity(KA) | 1.5 | 5 | 5 | 18 | 18 | 25 | 35 | 35 | 85 |
| Pole Number(P) | 3 | 2,3 | 2, 3 | 2,3 | 3 | 3 | 3 | 3 | 3 |
| a | 67.5 | 50,75 | 75 | 60,90 | 105 | 140 | 210 | 210 | 210 |
| b | 96 | 130 | 130 | 155 | 165 | 175 | 275 | 275 | 406 |
| c | 52 | 68 | 68 | 68 | 68 | 103 | 103 | 103 | 140 |
| d | 67 | 86 | 86 | 86 | 86 | 132 | 155 | 155 | 190 |

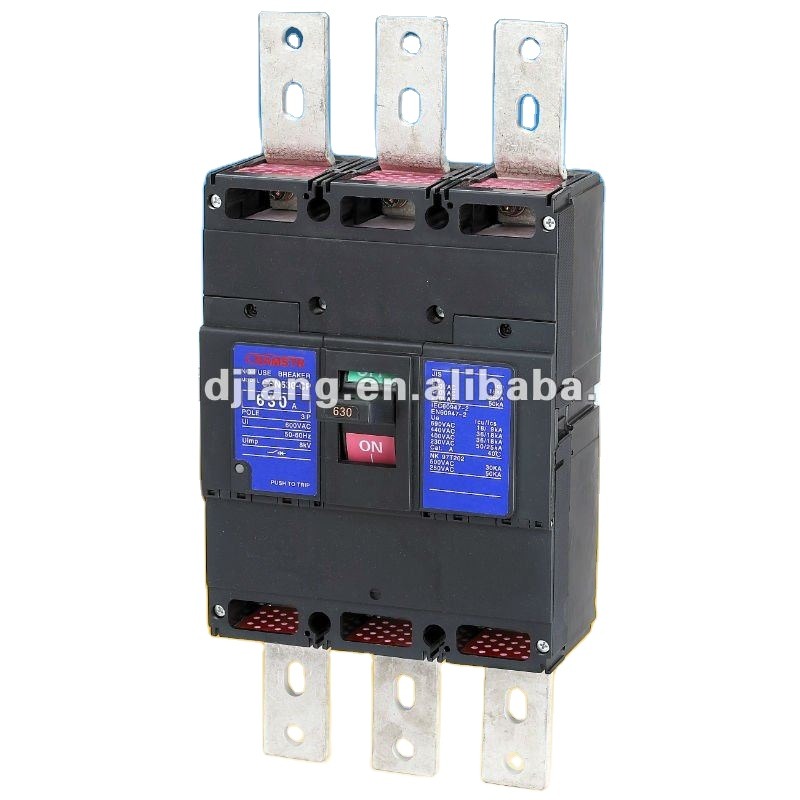

Product photos:
Express delivery:
Sample:
1.Free charge sample: Could provide,freight collect.
2.Samples time: Need 3-15 days to preparing the samples after receiving the payment.
3.Samples payment term: T/T.
Quality Guarantee:
Strictly quality control before leave factory.
Advantage:
1.Low MOQ: 50~100PCS.
2.New design Accepted: As your requirement.
3.Good Service: Customer as.
4.Good Quality: Strict quality control and good reputation.
5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract).
Order Guide:
|
1.Inquiry-Professional quotation. |
|
2.Confirm the price, lead time, packing requirement, payment term etc. |
|
3.sales send the Proforma Invoice with seal. |
|
4.Customer make the payment and send us Bank receipt. |
|
5.Will inform client that we have got the payment, arrange the production & inform the estimated time. |
|
6.After delivery will inform the tracking number and check the status for clients. |
|
7.Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better . |
