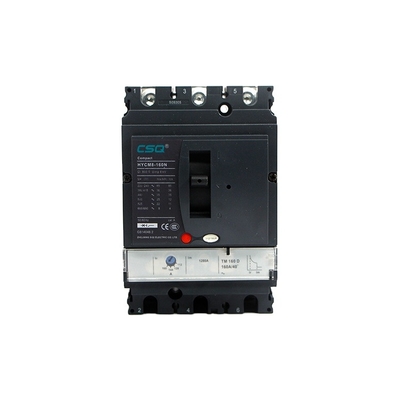

CSQ 630A 3P 4P New Case Circuit Breaker MCCB Supplier 3pole High Quality Black Molded CE Testing Design 10KA Circuit Breaker

1 Piece
MOQ
$18.00(1 - 49 Pieces) $17.00(>=50 Pieces)
preço
CSQ 630A 3P 4P New Case Circuit Breaker MCCB Supplier 3pole High Quality Black Molded CE Testing Design 10KA Circuit Breaker
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Model Number: HYCM8-100A
Breaking Capacity: 10KA
Rated Voltage: 480V
Rated Current: 1250A
Number of Pole: 2.3.4
Rated Frequency (Hz): AC 50/60 Hz
housing: modular design
Rated insulating voltage(V): 800
Rated operating voltage(V): 690
Poles: 3 and 4
certificate: CE,CCC,,ISO9001,PICC
Standard: IEC60497-2
Operating mode: Three type
Brand: OEM & ODM
Product name: MCCB(Molded Case Circuit Breaker)
Type: Moulded Case
Informação básica
Certificação: CE,CCC,,ISO9001,PICC
Model Number: HYCM8-100A
Condições de Pagamento e Envio
Packaging Details: 1, Strong export package, suitable for long distance transportation. 2, Customized package with customer's design, carton, box, and tape.
Descrição de produto
Products Description

HYCM8 series Moulded Case Circuit Breaker is one of new type breaker which is SIQI adopts international advanced design, manufacture technology to develop it. The rated insulating voltage is 750V, suitable for AC 50Hz(60Hz), rated working voltage 690V or below, rated working current is 12.5A to 1250A of circuit and use in distributing electric energy. Nonfrequent making and breaking in the normal conditions and protecting when circuit and installation are overload, short circuit and under voltage. Rated shell-rack and the breaker which current is under 400A, take protect effect when mousecage motor is nonfrequent start, breaking off working and protecting overload, short circuit and under voltage.
Innovation structure:
More compact and aesthetically
Intergration can be installed more easier
Easier to increase or decrease of function
Note: No code for distribution breakes; M represent motor protection circuit breakers. No code for dircet handle operation;presents electrical operation, and presents ratray-operated-handles.Rated breaking capacity grade of MCCB: D-Economical type; N-Standard type; H-high breaking capacity type.
Product Paramenters
Installation type of MCCB: MCCB are suitable for vertical or horizontal installation.
According to use of MCCB: distribution circuit protection type, motor protection type;
According to connection way : front panel connection, real panel connection, plug-in connection;
According to operation way: for direct handle operation, for external rotary handle operating, for motor operating;
According to overload release type: magnetic release (only instantaneous), the modynamic magnetic type (dual), electronic release;
According to number of poles: 2 pole, 3 pole, 4 pole.

The meutral pole( N pole) of 4 pole MCCB has for types:
Type A: no overload release on N poles, which is making at the time; not closing and opening with the other three pole.
Type B: no overload release on N poles, which closing and opening with the other three pole.
Type C: with overload release on N poles, which closing and opening with the other three pole.
Type D: with overload release on N poles, which is making all time; not closing and opening with the other three pole.
Type L :highest breaking capacity type.
Company Profile
About Siqi
Siqi Technology Co.,Ltd is a high-tech enterprise specializing in research and development, production, sales and services of automatic transfer switch, miniature circuit breaker, molded case circuit breaker and switch disconnector, load break switch, power meter, contactor, which is located in Yueqing city, the global capital of low-voltage electrical appliances.
Recommend Products
Factory introduction
Exhibition
Certifications
FAQ
1. How long is your products warranty?
A1: The warranty period of our products is 24 months.

2. How about inspection?
A2: We have the whole inspection system from raw material to end products including temperature rise test, salt spraying test conductor type test, mechanical life test and so on.

3. What do you have for certificates?
A3: CE&CB. Our products are passed through IEC60947-3 and IEC60269-2 standards.

4. What is payment terms?
A4: T/T, L/C, Western Union, Paypal, Alibaba Trade Assurance is all acceptable.

5. What is the service offered by company?
A5: We have the professional R&D team which can design and develop the mould to achieve all kinds of customer’s requirements. We also have the sales team to offer good services from sales and after-sale.

6. How to become the agents for CSQ?
A6: We will depends on the sales turn over and do research on your market. We can discuss it if you are interested.
